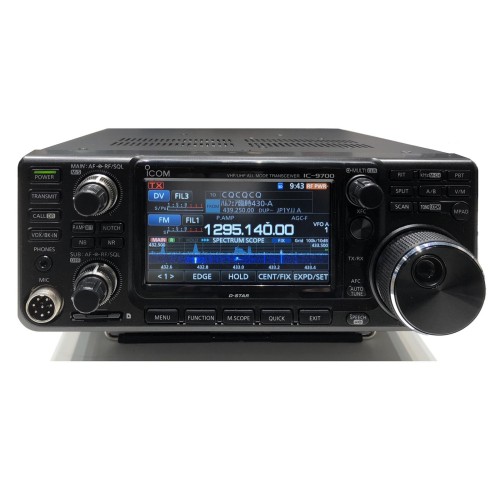

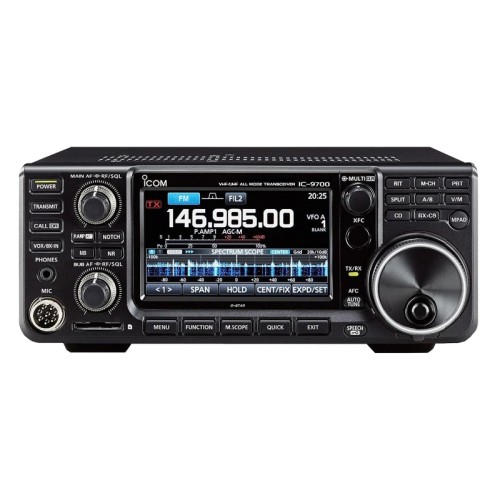

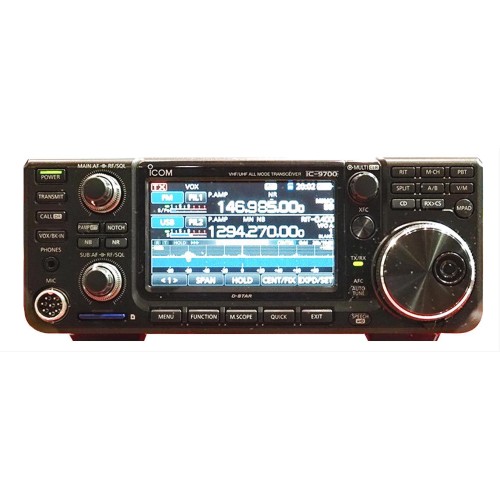

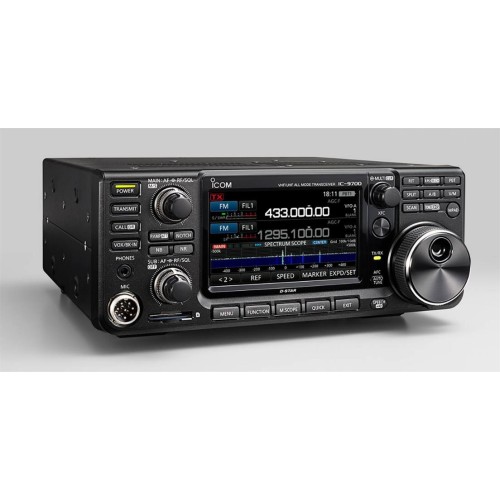

Icom IC-9700 VHF/UHF 2-70-23 transceiver

De lang verwachte opvolger van de IC-910H.

Basishandleiding in het Engels vindt u hier

Uitgebreide handleiding in het Engels vindt u hier.

Some of the features for ICOM's very-advanced IC-9700 include:

These VHF/UHF All-Mode Direct Sampling transceivers sport the absolute latest technology. Identical in size to its matching HF/6/4m IC-7300 brother & the new IC-R8600 receiver, the IC-9700 is already becoming one of the best selling transceivers in 2019

Some of the features for ICOM's very-advanced IC-9700 include:
• All mode, tri-band transceiver covering 144 MHz, 430 MHz as well as 1.2GHz
• Supports CW/AM/SSB/FM/RTTY and D-STAR Digital Voice and Digital Data modes
• 144MHz and 430MHz band is direct sampling. The 1.2GHz uses down conversions as well.
• Full duplex operation/ Dual Watch (no VHF/VHF or UHF/UHF capability.)
• PA will provide a powerful 100 W (144 MHz), 75 W (430 MHz) and 10 W (1200MHz) output

* Direct-Sampling SDR design
* High definition Real-Time TFT display
* Connection for external display
* Main and Sub RX
* Dual Real-Time Spectrum and Waterfall displays
* Dual Watch (with Spectrum/Waterfall displays)

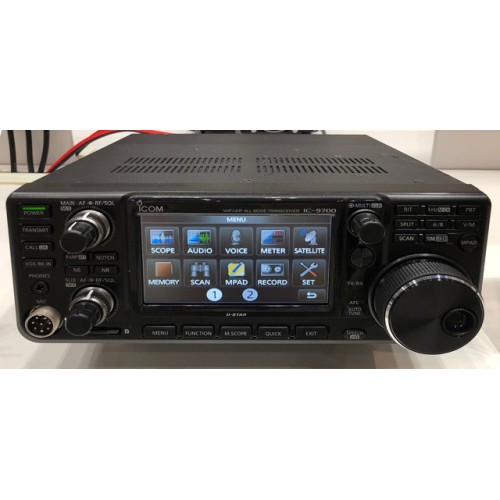

* Touchscreen interface (LCD touch-screen control)
* 50 Watts RF 2m and 70cm; 10 Watts RF 1.2 GHz

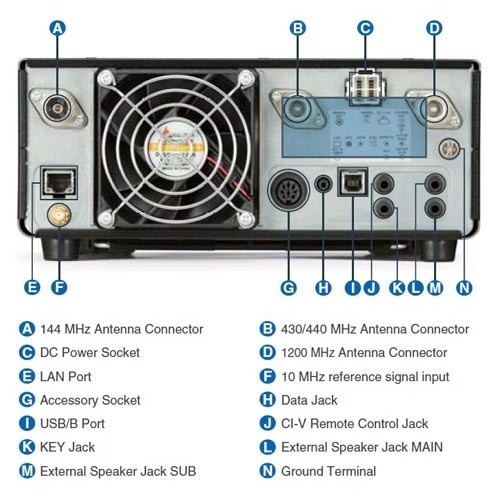

* Expected antenna connectors: 2m SO-239, 70cm Type N, 1.2 GHz Type N
* ICOM D-STAR

TRANSMITTER

Output power: <SSB/CW/FM/RTTY/DV/DD> <AM>
144 MHz > 0.5–100 W 0.125–25 W
430/440 MHz > 0.5–75 W 0.125–18.75 W
1200 MHz > 0.1–10 W 0.025–2.5 W
Modulation system:
SSB > Digital PSN modulation
FM > Digital Reactance modulation
AM > Digital Low Power modulation
DV > Digital GMSK Reactance modulation
DD > Digital Quadrature modulation
Spurious emissions: <Harmonics> <Out-of-band emission>
144 MHz > Less than –63 dB Less than −60 dB
430/440 MHz > Less than –61.8 dB Less than −60 dB
1200 MHz > Less than −53 dB Less than −50 dB
Carrier suppression: More than 50 dB
Unwanted sideband: More than 50 dB
Microphone impedance: 600 Ω

RECEIVER

Receiver system:
144, 430/440 MHz RF Direct Sampling
1200 MHz Down Conversion IF Sampling
Intermediate frequency: 311–371 MHz (1200 MHz)
Sensitivity (Preamp: ON, Filter: SOFT):
SSB/CW (10 dB S/N) > Less than 0.11 μV
AM (10 dB S/N) > Less than 1.0 μV
FM (12 dB SINAD) > Less than 0.18 μV
DV (1% BER) (PN9) > Less than 0.35 μV
DD (1% BER) (PN9) > Less than 1.59 μV
Selectivity (Filter: SHAPE):
SSB (BW=2.4 kHz) > More than 2.4 kHz/−3 dB, Less than 3.6 kHz/−60 dB
CW (BW=500 Hz) > More than 500 Hz/−3 dB, Less than 700 Hz/−60 dB
RTTY (BW=500 Hz) > More than 500 Hz/−3 dB, Less than 700 Hz/−60 dB
AM (BW=6 kHz) > More than 6 kHz/−3 dB, Less than 15 kHz/−60 dB
FM (BW=15 kHz) > More than 12 kHz/−6 dB, Less than 20 kHz/−60 dB
DV (12.5 kHz spacing) > More than −50 dB
DD (300 kHz spacing) > More than −40 dB
Spurious and image rejection ratio:
SSB/CW > 144, 430/440 MHz More than 70 dB, 1200 MHz More than 50 dB
AM/FM/DV > 144, 430/440 MHz More than 60 dB, 1200 MHz More than 50 dB
DD > 1200 MHz More than 50 dB
Audio output power: More than 2.0 W (1 kHz, 10% distortion) into an 8 Ω load
