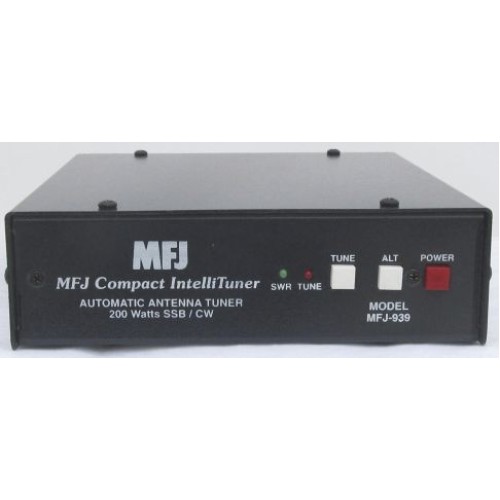

MFJ-939 I plug en play automatische tuner voor Icom

Tuned tot 12 keer sneller dan de LDG tuner en heeft een groter geheugenbereik

Tuned van een swr van 31:1 naar 1:1


Er zijn modellen voor Icom, Kenwood, Yaesu


Plug & Play! You won’t even know it’s there . . . MFJ-939I/K/Y automatically tunes your antenna as you tune your radio. SWR is just always low.

Tunes your coax fed or random wire antennas 1.8-30 MHz from 2 Watts QRP to full 200 Watts SSB/CW.

Matches 6-1600 Ohms (SWR up to 32:1) -- that’s a 50% wider matching range than competing products that are less capable and higher priced . . . and it’s made in the USA.

Highly intelligent, ultra-fast tuning!
As you’re ragchewing, contesting or DXing, the MFJ-939 is learning your antenna and the way you operate and storing all this in its 20,000 memories. The more you use it, the more it learns.

Measure & Compute = Instant Match
MFJ-939 uniquely measures your antenna’s complex impedance (R, X), computes the L-network and snaps in needed components for instant matching.

AdaptiveSearch
AdaptiveSearch determines a sub-set of all solutions that can provide a safe match and searches only that subset giving
you an ultra fast match. Others search slowly through all solutions.

InstantRecall
InstantRecall first checks its memory to see if you have operated this frequency before. If so, tuning is instantaneous and you’re ready to go!

MFJ VirtualAntenna Memory
MFJ exclusive VirtualAntenna Memory system gives you 8 antenna memory banks of 2500 memories each.
You can use an antenna switch to select up to 8 antennas and assign each antenna its own 2500 memories!

4 Times More Solutions and Faster!
MFJ has 256 values each of capacitance and inductance for 131,072 matching solutions giving you a finely tuned very low SWR. That`s 4 times the 32,768 solutions of competitors using only 128 L/C values each!
Don`t be fooled by competing products claiming fast search times -- if you have a quarter of the matching solutions, of course,it takes less time to finish but it`s not faster.
MFJ`s faster speed comes from advanced technology and software algorithms not from fewer solutions.

Audio SWR Meter
An Audio SWR meter beeps when SWR <1.5, 2, 2.5, 3. Alarms if >3. Audible & Visible Diagnostic messages.

Heavy-Duty Components
Heavy-duty L-network: 10 Amp/1000V relays, RF duty silver mica caps won’t burn up. Safe, reliable, continuous 200W SSB/CW.

Never Obsolete . . . Super Versatile
Truly Plug & Play! No settings, only one cable to plug in! Order MFJ-939I, Icom; MFJ-939K, Ken; MFJ-939Y, Yaesu. Specify Yaesu: FT-100/450/950/ 857/897/1000MP/9000/2000 or other.

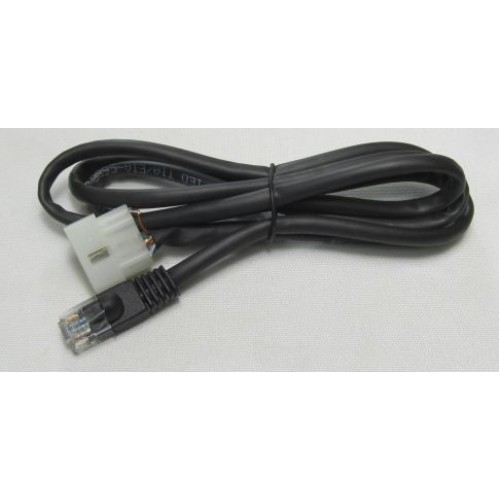

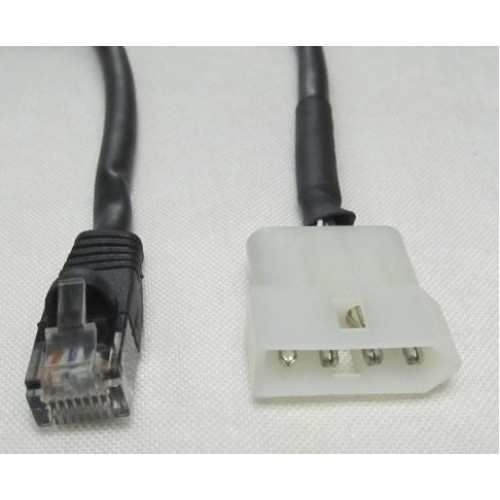

If you get a new transceiver, simply order a new Plug and Play cable.

Super Versatile! Works with ALL older rigs, classic transmitters, Flex, Elecraft, Tentec, QRP, others. Auto tune antenna -- touch tune button on any MFJ-939I/K/Y for any rig.

Features
• Automatically matches antennas from 6 to 1600 ohms impedance (SWR up to 32:1)
• Handles 200 watts SSB/CW
• Tunes in less than 15 seconds, usually less than 5 seconds
• Over 20,000 non-volatile memories for tuner settings
• Eight memory banks with over 2500 memories per bank
• Highly efficient switching L-network matching circuit
• 1.8 to 30 MHz continuous frequency coverage
• Audio SWR meter
• Built-in frequency counter for remembering frequency-specific matching values
• Built-in radio interface circuitry for compatible radios

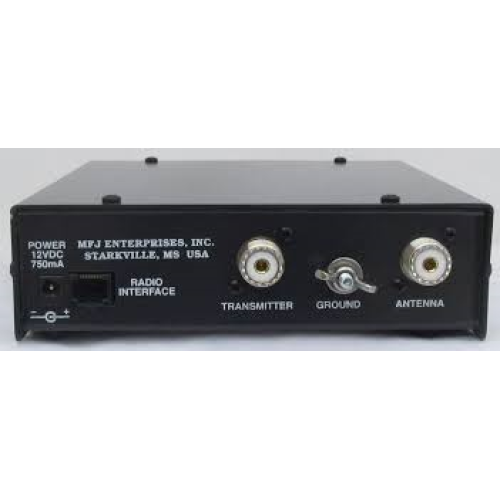

• SO-239 coax fed antenna connector
• SO-239 coax to single wire adaptor

Specifications
• Impedance matching range : 6 to 1600 ohms
• SWR matching range : Up to 8:1 for < 50 ohms and up to 32:1 for > 50 ohms
• Minimum power for tuning : 2 watts
• Maximum power while tuning : 100 watts with fold back, 20 watts without fold back
• RF power limit : 200 watts SSB/CW
• Frequency range : 1.8 to 30 MHz continuous coverage
• Frequency counter accuracy : ±1 kHz across HF bands
• A/D conversion resolution : 8-bit
• Capacitance range : 0 to 3961 pF nominal (256 values)
• Inductance range : 0 to 24.86 μH nominal (256 values)
• Relay rating : 10 amp 1000 volts
• Relay electrical life : 100,000 operations
• Relay mechanical life : 10 million operations
• Memory endurance : 1 million erase/write cycles
• Memory data retention : > 200 years
• Power supply requirements : 12 - 15 volts DC
• Current consumption : 750 mA or less
• Dimensions :165 × 54 × 210 mm (w × h × d)
• Weight : Approx. 2.3 lb; 1.04 kg

Models
MFJ-939I Icom IC-706, IC-707, IC-718, IC-725, IC-728, IC-736, IC-738, IC-746, IC-756, IC-7000
and compatibles
MFJ-939K Kenwood TS-50S, TS-450S, TS-480HX, TS-570S, TS590, TS-690S, TS-850S, TS-870S,
TS-2000, and compatibles
MFJ-939Y Yaesu FT-100, FT-450, FT-847, FT-857, FT-897, FT-950, and compatibles
MFJ-939Y3 Yaesu FT-1000MP and FTdx-9000
MFJ-939Y4 Yaesu FT-2000, and FT-5000
