  • Yaesu FT5DE, 5W C4FM/FM 144/430MHz Dual Band Digital Transceiver

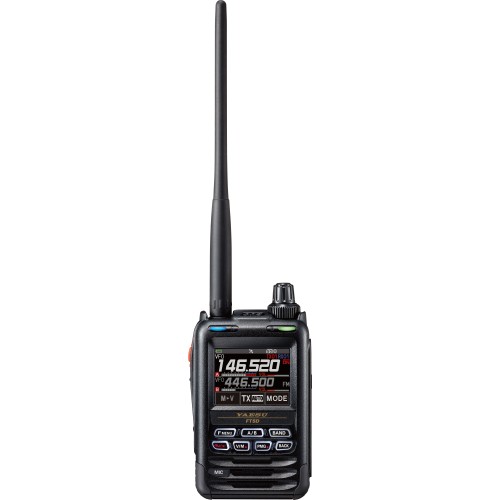

Yaesu FT5DE, 5W C4FM/FM 144/430MHz Dual Band Digital Transceiver

Half september 2021 leverbaar

The new FT5DE is a full-featured C4FM handheld transceiver with superior operability and new sophisticated functions.
Even in a compact body (W62mm x D34mm x H100mm), the FT5DR/E provides reliable 5W RF power output and achieves loud
1W audio power that has been tuned for quality audio. Real Dual Band Operations (V+V, U+U, V+U, U+V) are available with two
independent receivers. Large individual LED indicators for A band and B band present the status and communication modes (C4FM
or Analog) of each band instantly. The new FT5DE supports simultaneous C4FM digital (C4FM/C4FM standby).
With rubber protection on the corner of the main body, the FT5DE has rugged and shock-resistant construction. The waterproof
rating is IPX7. The comfortable size and form of the full-flat back body provides excellent grasp for the radio operator.
A high-resolution display highlights the frequency of the operational band. The colour of the operating band frequency can be
selected from white, blue or red. Three (3) touch panel keys and seven (7) operation keys below the display offer intuitive
The new TOUCH & GO operation is convenient in order to immediately start the communications on an often-used frequency. By
pressing and holding the “PMG” key, the frequency of the current display is registered into Primary Memory Group. After
registration, pressing the “PMG” key will display the receive status of the registered frequencies as bars on a graph (activity
monitor). By simply touching the displayed bar, the user can instantly recall that frequency. (TOUCH & GO Operation)
Band Scope function monitors in real time, up to 79 displayed channels that are centered around the current VFO frequency. The
center frequency can be tuned by the dial knob or by touching and moving the frequency of a displayed channel bar.
The C4FM digital communication features which are already popular in the market, such as: Automatic Mode Select (AMS), Digital
Group ID (DG-ID) operation, and Smart Navigation function are available with the new FT5DE.
The FT5DE supports the WiRES-X Portable Digital Node Function as well. A portable digital node can be easily set up with the
new FT5DE, an internet connected laptop PC, and the optional SCU-39 cable kit
Plus advanced features of the new FT5DR/E are: Wireless hands-free operation using the optional Bluetooth® headset (SSM-BT10);
VOX function; Memory Auto Grouping (MAG); VFO Band Skip Function; Wide-range RX coverage with continuous reception from
0.5MHz–999.99MHz (A Band) & 108MHz–580MHz (B Band); Built-in high-sensitivity 66 channel GPS receiver; 1200/9600bps APRS
Data modem; 2,200mAh High-Capacity Li-ion Battery Pack (SBR-14LI) as standard; Voice Recording Function; Simultaneous
AM/FM broadcast Reception while monitoring two frequency channels; Micro SD Card Slot.
New Quick Release Holster (SHB-26) is included in the FT5DR/E package as a supplied accessory that allows single-touch attaching and detaching the transceiver while wearing the holster on a belt.

Radio Features:
- Compact Design and Reliable 5W RF Power Output
(Selectable 5W / 2.5W / 1W / 0.3W)
- High Visibility Full-Color TFT Touch panel Display (*The
color of the operating frequency may be selected from
White, Blue or Red.)
- Dual band Simultaneous Receive (V+V / U+U / V+U /
U+V) & C4FM/C4FM Standby
- Advanced C4FM Digital Mode with AMS (Automatic
Mode Select), DG-ID feature and Smart Navigation
- 1W (1000mW) of loud audio power with C4FM clear
and crisp audio quality
- Rugged Construction: Robust Rubber Protection / IPX7
Rating Water Protection
- TOUCH & GO Operation with Activity Monitor
・PMG (Primary Memory Group Activity Monitor)
・CAM (CH Activity Monitor)
- VFO Band Skip Function
- Memory Auto Grouping (MAG) Function
- High Speed Band Scope Function enables monitoring up
to 79ch centered on the current VFO frequency
(Selectable 79 / 39 / 19ch)
- Full-Flat back body provides excellent grasp / Quick
Release Holster (SHB-26BK) Included
- Built-in 66ch High-Sensitivity GPS Receiver
- Built-in Bluetooth® unit and the VOX function support
wireless and easy Hands-free operation
- WIRES-X Portable Digital Node compatible
- Dual Simultaneous AM/FM Broadcast Reception and 2-
channel Monitoring
- 1200/9600bps APRS® Data Communication
- Recording Function
- Micro SD Card Slot (up to 32GB)

Supplied Accessories:
7.2 V 2,200mAh Li-ion Battery Pack (SBR-14LI)
Battery Charger (SAD-25)
Belt Clip (SHB-13) / Quick Release Holster (SHB-26(BK))
USB Cable
Operating Manual

Band RX:
0.5 - 1.8MHz (AM Broadcast)
1.8 - 30MHz (SW Band)
30 - 76MHz
76 - 108MHz (FM Broadcast)
108 - 137MHz (Air Band)
137 - 174MHz (144MHz HAM)
174 - 222MHz
222 - 420MHz
420 - 470MHz (430MHz HAM)
470 - 800MHz
800 - 999.995MHz (USA Cellular
B(Sub) Band
108 - 137MHz (Air Band)
137 - 174MHz (144MHz HAM)
174 - 222MHz
222 - 420MHz
420 - 470MHz (430MHz HAM)
470 - 580MHz
TX: 144 - 146MHz (C4FM/FM)
430 - 440MHz (C4FM/FM)
Circuit Type: NFM/AM: Double-Conversion
FM/AM Radio: Direct-Conversion
F1D, F2D, F3E, F7W
RF Power
5W / 2.5W / 1W / 0.3W (@
Battery pack or EXT DC)
Case Size (W
x H x D):
2.44" x 3.94" x 1.34" (62 x 100 x
34 mm) (with SBR-14LI, w/o Knob
& Antenna)
Weight: 9.95oz (282 g) (with SBR-14LI and
