RF Explorer Spectrum Analyser with additional 6 GHz band (4850 - 6100 MHz), especially for measurements in the ISM/Wifi range.

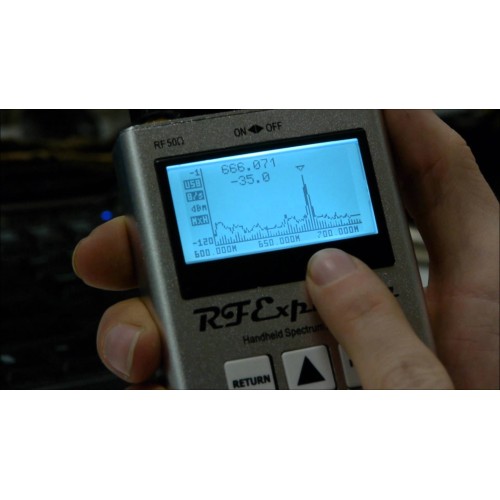

The RF Explorer is a portable spectrum analyzer. The LC display with background light shows a section of the radio spectrum and the receivable signals. Signal strength is shown in dBm or dBµV. This way you can see available signals on chosen frequency range at a glance. This makes the RF Explorer a very useful measurement instrument as well a fast working bug hunter to find hidden transmitters easily.
The RF Explorer has a frequency range from 15 to 2700 and 4850-6100 Mhz covering all important radio ranges that are used for surveillance cameras, mini transmitters, WLAN, emergency services radio and many others. Two different antenna inputs for various frequency ranges allow for the use of specially adapted antennas that make the RF Explorer even more sensitive. Minimal sensitivity of the spectrum analyzer is -115dBm. A marker on the LC display indicates the level of the strongest signal automatically.
Center frequency and displayed spectrum are easily adjusted in the menu, as well which antenna input to use. The display can memorize and display received maximum values. This means you can leave the receiver unattended for a while and check later if a signal was received. A special Wifi mode allows for detailed monitoring of channels on 6 Ghz WLAN.

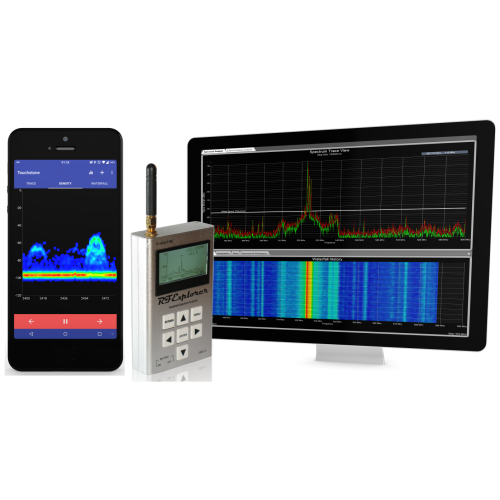

The USB port of the RF Explorer is used to charge the internal Li-Ion battery (1000mAh) and to transfer data to a PC or MAC computer. With the help of freely available software the received signal spectrum can be displayed on the computer and saved for documentary purposes. The Software is open source, the USB port transfer protocol is documented, too. This makes the RF Explorer very open and perfect for hackers and hobbyists, who want to implement their own ideas. Also, firmware updates are applied via USB. The USB-Cable is not included.
Technical Data RF Explorer 6GHz Combo
Frequency Ranges 15 – 2700 MHz 4850 – 6100 MHz
Frequency precision typ. ± 0.5 ppm typ. ± 10 ppm
Level accuracy typ. ± 3 dBm typ. ± 6 dBm
Displayed bandwidth 112 kHz – 600 MHz 2 MHz – 600 MHz
Display resolution 3 – 600 kHz 58 – 812 kHz
Dynamic range -110 – -10 dBm typ. -105 – -15 dBm typ.
Max. input level +30 dBm +25 dBm
Noise floor -105 dBm typ.
Frequency setting accuracy 1 kHz
Antenna connectors 2x SMA
Impedance 50 Ω
Display backlit LCD, 128x64 px
Weight 225 g
Size without antennas 113 x 70 x 25 mm
Included in shipment
RF Explorer Spektrum-Analyser 6G Combo
Wideband telescopic antenna
Helical rubber antenna 2.4GHz
Helical rubber antenna 5.8GHz
Operating Manual english
RF Explorer Spectrum Analyser with 6 GHz Band
