  • OMB MOT 5 DVB-T/H  Digital TV Zender

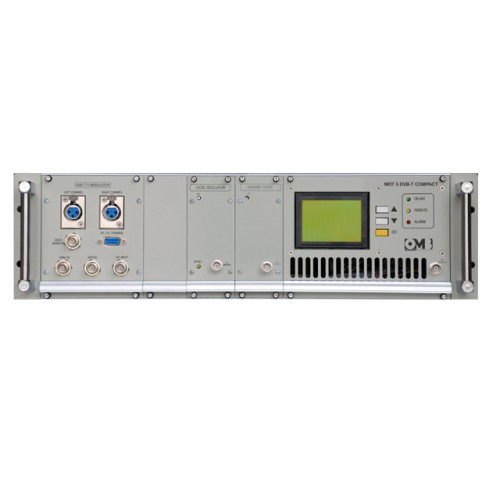

OMB MOT 5 DVB-T/H COMPACT is a Digital Terrestrial Television transmitter designed to be the optimal solution for Local TVs to access the digital world

The MOT 5 DVB-T/H COMPACT includes a board that with a MPEG-2 encoder and a COFDM modulator. It has analog (PAL or NTSC) and digital (SDI) video inputs and analog (L+R) audio inputs. Once the audio and video have been coded (MPEG-2) they are multiplexed and SI/PSI tables are added. Later, the resulting signal (Transport Stream format) is sent to the COFDM modulator block (Coded Orthogonal Frequency Division Multiplexing), which implements the modulation according to the European Standard (ETSI EN 300-744). Then, the signal is converted to the output frequency and finally, it is amplified by an A-Class 5Wrms power amplifier.

This equipment is designed to transmit only one TV program in a channel, so it offers the advantage of a simple adaptation from analog to digital emission. It is only necessary entering the equipment with the signals coming from the analog microwave link and turn on the equipment to be "on air" transmitting in digital.Moreover an ASI Transport Stream input is available to be used.






Technical Facts:
  • frequency range470 ~ 862 MHz
  • final stage technologyLDMOS (A Class)
  • control interfaceVia RS-232 or via Ethernet
  • coolingForced Air
  • power supply90 ~ 260 VAC ± 10%, 50/60 Hz
  • dimensions3RU 19’’ standard rack
  • weight16Kg
  • operating temperature-5 ~ +45ºC
  • relative humidity range20 ~ 90%
  • inputsanalog videoCompound video (optional RGB)
  • BNC Female connector
  • digital videoSDI
  • BNC Female connector
  • analog videoasi input
  • Right/Left channel
  • XLR Female connectors
  • BNC Female connector
  • mpeg + mux encoder
  • generation of si/spi editable tables
    Service name
    Service provider name
    Network name
    PID Audio and Video
    PID PCR and PMT
    Program number
    Transport stream ID
    Table version
    LCN (Logical Channel Number)
  • modulator (according to et si en300-744 standard)
  • channel bandwidth6, 7,8 MHz
  • transmission mode2K and 8K
  • hierarchical modeAlfa=0
  • constellationQPSK, 16-QAM and 64-QAM
  • guard time1/4, 1/8, 1/16 and 1/32
  • fec1/2; 3/4, 5/6 and 7/8
  • CONNECTORN female

Schrijf een beoordeling

Opmerking: HTML is niet vertaald!
    Slecht           Goed

OMB MOT 5 DVB-T/H Digital TV Zender

  • Merk: manufacturer
  • Productcode: mot5
  • Beschikbaar: Op voorraad
  • € 11.105,37

  • Excl. BTW: € 9.177,99
