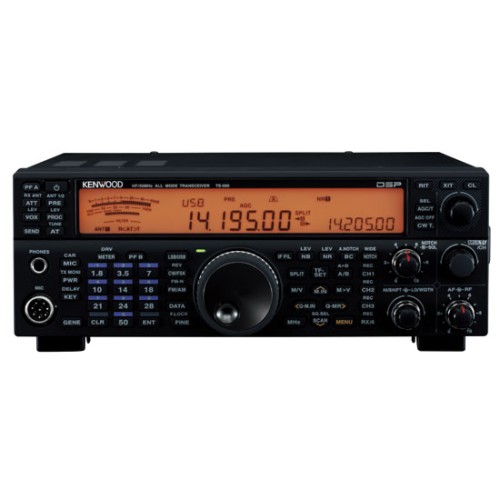

Kenwood TS-590SG Transceiver HF/50MHz
Four years ago we launched our best-selling TS-590S transceiver into the mid-range HF market. Technology has moved on, so now it is a pleasure to announce the updated TS-590SG model, which replaces the TS-590S in production.
TS-590SG Incremental changes help performance and function to evolve
1. Equipped with 500 Hz/ 2.7 kHz Roofing Filter as standard
1st IF frequency (11.374 MHz) down conversion*2 is employed when receiving on 15, 20, 40, 80 or 160 meter bands. Included as standard directly after the 1st Mixer and Post Amp that compensates for conversion loss is a BW 500 Hz and 2.7 kHz 6-pole MCF, which determines adjacent receptivity realizing superb dynamic range performance that was not possible using up conversion. Even when an interfering signal approaches the reception frequency, a virtually flat dynamic range is maintained. You can capture a clear signal even in reception conditions where strong adjacent interfering signals become
*2: Down conversion is selected automatically when receiving in CW/ FSK/ SSB modes if the final passband is 2.7 kHz or less.
This graph shows what happens when the frequencies of two interference signals for measuring the dynamic range are converted from +2kHz to +20kHz from the reception frequency. For example, at the point where separation is 10kHz, the interference signals are 14.03MHz and 14.04MHz. It can be seen that the TS-590SG achieves virtually flat characteristics even in the 3rd Order Dynamic Range measurement method implemented by ARRL*3.
Note: TS-590S measurement values from QST® May
2011 PRODUCT REVIEW Kenwood TS-590S HF and 6 Meter Transceiver published by ARRL (reprinted with permission of ARRL)
*3: The American Radio Relay League (ARRL) is the national association for amateur radio.
2. Advanced AGC control through digital signal processing from the IF stage onward
It would be no exaggeration to say that Kenwood's receive audio, which enjoys a reputation for being
non-tiring even in long contests, is determined by IF AGC control based on unique DSP algorithms.
This series features all of the IF DSP AGC technology developed with the TS-990S. A remodeling of the AGC circuitry has realized superb AGC performance covering from small to large inputs. Even if interference signals slip between the Roofing Filter and the IF DSP filter that determines the final selection, level optimized AGC control enables operation without the need for awareness of Roofing Filter bandwidth.
3. Morse code decoder function
Received morse code displayable*4 by scrolling on 13-segment display unit. Moreover, characters are shown*4 in a dedicated window on the ARCP-590G (freeware).
*4: Proper decoding may not be available due to reception conditions, etc.
4. Programmable functions
Frequently used and special functions can be assigned to the programmable function (PF) keys. With the TS-590SG, in addition to the PF keys, functions can also be assigned to the MULTI/CH knob's Push SW. Quick settings are made possible by assigning level setting functions such as keying speed. The RIT/XIT/CL keys can also be used as programmable function keys.
5. New Split function enabling quick setting
In addition to conventional split frequency setting methods, the TS-990's proven split setting functionality has been included. A long press of the SPLIT key, when making a 2 kHz upsetting, will enable quick setting by pressing "2" on the keypad. Furthermore, in simplex operation with just XIT on, the XIT frequency can be changed with TF-SET. The keypad keys are band-direct keys. Each band has 3 memories, enabling quick call-up of usually-used frequencies.
6. Other features
Antenna output function (shared with DRV connector)
・LED backlight with selectable color tone
・FIL A/B configurable independently with VFO A/B (convenient during Split operation)
・Front or rear PTT selectable for Data PTT
・Switching from HI CUT/ LO CUT to WIDTH/ SHIFT possible for reception bandwidth changing in SSB mode
・Interference/noise removal features
・Heavy-duty design is capable of withstanding grueling conditions typical of contests or long hours of hard operation with two of 60mm fan cooling system
・Built-in preset-type high speed operation automatic antenna tuner
• It is not possible to upgrade previous TS-590S models.
• Current PC Application Software, ARCP-590 and ARHP-590, do not work with “G” models – please download the latest ARCP-590G and ARHP-590G programs.
• Both ARCP-590 and ARCP-590G may be installed on the same PC.
8. Firmware update
* We are to offer some of the new TS-590SG’s functions to owners of our current TS-590S models via a free firmware download as "TS-590S Ver.2.0 update".(Please see here for details. http://www.kenwood.com/i/products/info/amateur/ts_590/ts590v2_e.html )
9. Optional Accessories
MC-90 Deluxe Desktop Microphone
MC-60A Desktop Microphone
MC-47 Hand Microphone (4 PF Buttons)
MC-43 Hand Microphone
HS-5 De-luxe Headphone
PG-20 DC Cable (7 metres)
MB-430 Mobile Bracket
PS-60 Heavy-duty Power Supply (22.5A)
KES-3S External Speaker
SP-23 External Speaker
VGS-1 Voice Guide & Storage Unit
ARCP-590G Radio Control Program (Freeware)
ARHP-590G Radio Host Program (Freeware)
Kenwood TS-590SG Transceiver HF/50MHz
- Merk: Kenwood
- Model: ts590sg
- Beschikbaarheid: Op voorraad
- Excl. BTW: € 1.321,49
