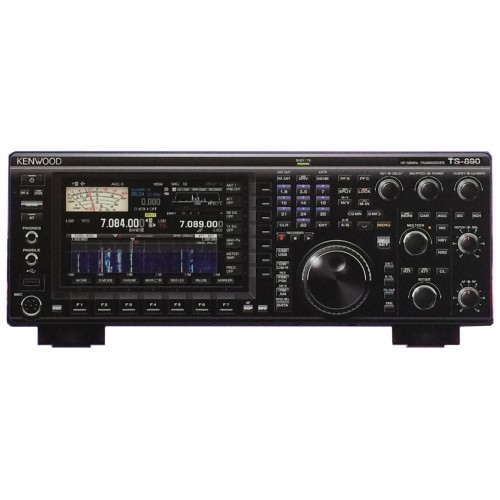

• Kenwood TS-890-S HF transceiver

The Kenwood TS-890s transceiver

Receive performance is on a whole new level from narrow bandwidth roofing filters that only full down conversion can provide.
The TS-890S uses 8.248MHz 1st IF frequency down conversion for its receive signal system in order to continue the adjacent interference signal exclusion legacy refined in the TS-990S.

This means you can use narrow bandwidth crystal filters with passband widths of 500Hz or 270Hz (optional YG-82CN-1) as roofing filters to achieve strong exclusion of unnecessary adjacent signals.

The 1st mixer is the H-mode mixer also carried by the TS-990S.

Conversion characteristics have been improved with fine-tuning of input/output matching as well the device used.

Kenwood say this radio delivers top-class receive performance with the following specifications.
110dB* 3rd intermodulation dynamic range (3rd IMDR) measured under punishing 2kHz spacing conditions.
114dB* reciprocal mixing dynamic range (RMDR).
150dB* Blocking dynamic range (BDR)
(*: 2 kHz spacing measurement standard - Receiver frequency 14.2 MHz,
MODE CW, BW 500 Hz, PRE AMP OFF)

Main Features :
• 100W
• 160m - 4m (50W on 4m)
• Built in antenna tuner
• Included roofong filters (500Hz / 2.7kHz / 6kHz / 15kHz)
• Down conversion Receiver
• Extra-low phase noise Local Oscillator
• IF output for external receiver display
• 7 inch Color TFT Touch Display with auto-scroll Band-Scope and Multi-purpose display
• Live Band Scope



Receiver with H-Mode mixer
TS-890S Roofing Filter
Zoom
TS-890S Roofing Filter

Kenwood uses a well known and highly acclaimed concept known as 'H mode' mixer. This mixer works with 4 very fast digital switches in an "H" arrangement (hence the name). One reason why this circuit has rarely been used so far is the relatively high requirements for the transformers. In order to avoid reciprocal influence and unwanted mixing products in the best possible way, an correct impedance-matched adaptation with three transformers developed especially for this purpose is required. Kenwood has not shied away from this effort with the mixer. Additionally, in order to make good use of this excellent mixer, an LO with low phase noise is also necessary. Here the manufacturer uses the proven concept of the flagship "TS-990S" with the HMC829 chip. The downstream standard roofing filters do the rest to achieve the best dynamic range values: 110 dB 3rd Order IMDR, 114 dB for RMDR and 150 dB BDR, measured at a distance of 2 kHz! This should ensure the TS-890S a top position in the usual lists. The advantage for the user is an intermodulation-free reception and outstanding large signal handling capabilities, even under the most difficult conditions.

7" inch LC display
TS-890S Display
Zoom
TS-890S Display

The digital technology following the filters works with two very powerful DSPs, which are clocked at over 300 MHz. More than enough computing power is available to perfectly control the AGC, but also to realize AF filters (notch, peak, noise, etc.). The result for the ambitious radio amateur are many adjustment possibilities to improve the received signal. Parallel to the receiver described above, there is also a second digital receiver with 14-bit AD converter, which displays the waterfall diagram on the 7" display. Up to 500 kHz spectrum width can be displayed here. Due to this independent receiver, the speed of the display of the waterfall is very high and also unaffected by the other settings. A multitude of very innovative ideas facilitate the tuning by tapping on the touch-sensitive part of the display. This way, the waterfall diagram is also calculated in the areas not currently displayed and is immediately displayed in full when the display is moved. This does not create any gaps in the display. Another feature of TS-990 has also been adopted, namely the display of filters with LF spectrum, notch position and much more. The large S-meter can be switched by tapping it in various displays.






Solid power amp with automatic tuner up to 70 MHz
TS-890S PA
Zoom
TS-890S PA

The transmitter output stage is constructed with industry proven MOSFET modules (e.g. RD100HHF1). The result is a clear and clean signal that can also drive a power amplifier. The output power is up to 100W for HF to 54 MHz, and 50W on 70 MHz. The driver output is available at a separate socket to enable the control of a transverter, also for 137 and 475 kHz. The built-in automatic tuner operates with relays and a sufficient number of L and C components for accurate and fast tuning in a range from 16.7 to 150 Ω. Tuner memories help a faster tuning cycle when visiting previously used frequencies. The TS-890S comes standard with a TXCO that provides ± 1ppm accuracy. For particularly demanding applications, a 10 MHz reference clock input for an external frequency standard is available. The whole transceiver is built on a very robust diecast aluminium chassis and equipped with two slow (= quiet) rotating fans

Decoder for CW, RTTY und PSK

The excellent user interface of the TS-890S is based on Kenwood's 70 years of experience. Even complex functions are easy to operate, thanks to the large 7" display with softkeys and numerous classic controls. The hunt for the rare DX station is made much easier by quickly accessible split settings. Built-in decoders for telegraphy, RTTY and PSK31/63 are available, and if you connect a USB keyboard you can also use these modes without a computer on the transmitter side. For each operating mode, three different IF filter widths can be quickly switched via a separate button. And if you miss a second VFO knob you can connect your existing TS-590S (after a firmware update) as a second receiver to the TS-890S! Many rear ports are available for external devices, including a USB interface that provides a complete sound card interface (CAT control, audio input/output). The same functions are also available on the LAN connection (Ethernet). Thus, the TS-890S can also be used as a remote station without a computer provided. This simplifies station setup considerably and also reduces power consumption! The internal 1 GB memory of the transceiver is available for recording a received signal, but you can also use a USB stick as external memory.

  • Kenwood TS-890S Features
  • All shortwave bands incl. 60m, + 6m + 4m
  • Exceptional strong large signal handling capabilities by H mode mixer and low phase noise LO
  • Large 7 inch LC display, partially with touch function
  • 4 selectable roofing filters from 15 kHz to 500 Hz
  • Optional fifth roofing filter with 270 Hz available
  • Independant Digital receiver for fast and wide waterfall display
  • Super fast IF DSP for accurate control of the AGC loop
  • Many AF filter options like Notch, Peak, noise reduction, noise blanker and much more
  • Solid PA with 100W output power for frequencies up to 54 MHz, 50W on 70 MHz
  • Built-in automatic tuner 16.7 – 150 Ω
  • Built-in TCXO with ± 0.1 ppm stability
  • Built-in CW decoder, transmit with external USB keyboard, or with built-in keyer for straight or paddle key
  • Built-in RTTY and PSK-31/PSK-63 decoder, transmit with external USB keyboard
  • Digimode interface via USB port and LAN interface
  • Remote control capability via LAN interface
  • Free ARCP-890 Software for remote control
  • 1GB of memory for up to 9 hours recording of a received signal, een more with an external USB memory stick
  • 120 memories for often used frequencies
  • Three programmable function keys
  • Voice annoucnements capability built-in
  • DVI-I connector for external screen
  • and much more…
  • Volume di consegna
  • TS-890S Transceiver
  • Power cable for 13.8V power supply
  • Various conectors (7p DIN, 13p DIN)
  • Variosu spare fuses
  • User manual
