Mini-VNA Tiny Antenna Analyzer up to 3 GHz

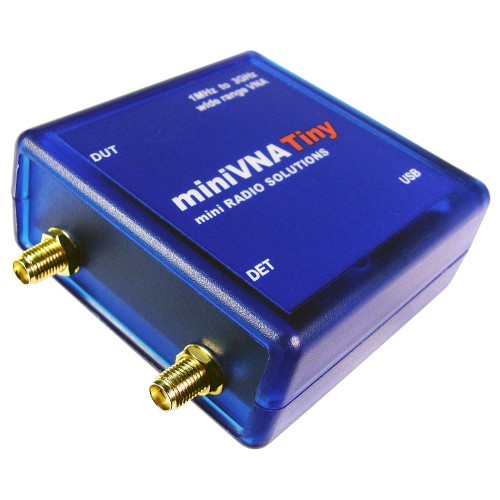

The MiniVNA-TINY is a very compact antenna analyzer with USB connection. Remarkable is the very large frequency range from 1 to 3000 MHz. The MiniVNA-TINY is a network analyzer and does not only allow measurement of SWR and impdances of antennas. As a two-port system the MiniVNA-Tiny can be used for transmission measurements on band filters or amplifiers. The device works as a vectorial analzer, suitable to do typical quadrupole measurements of S11 and S21 parameters. The results can be displayed or stored as Smith diagram.

Due to the calibration with an optional calibration kit (open, short, load, see arrticle 21010.SMA) the measurement results are precise and easily reproducible. Impedance (Z) can be measured from 1 to 1000 Ω, the dynamic range is up to 70 dB. The analyser can be used as a low power HF generator as well. Power supply is done by the USB interface, an external power supply is not required. Software upgrades are also provided via the USB interface. The recommended software is 'VNA/J' the same software as already known from the other MinIVNA products. THis software is available for Windows, MAC and Linux, a new Android app is also available.

The Android app is called 'BlueVNA' and is available in the Google Play Store. The connection to the Android device is done by USB, you will require an OTG adaptor (not sold by us).

Technical Data miniVNA-Tiny
Frequency Range    1 – 3000 MHz
Impedance Range (Z)    1 – 1000 Ω
Output Power    -6dBm @ 500 MHz
Dynamic Range    up to 70 dB @ 500MHz
Connectors    2 × SMA
Power Consumption    370mA @5V (USB)
Weight    70g
Dimensions    66 x 66 x 28mm

For calibration of the Pro-miniVNA BT, you need a calibration set, consist of one 50Ω terminator, SMA plus one open, one short.
