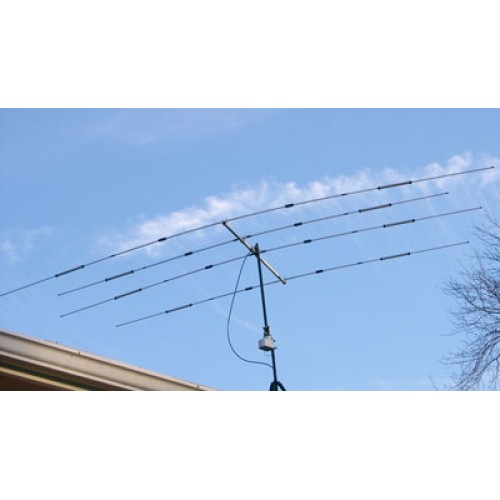

MINI-33-AW

3 Elements on 10, 15, 20

Rotatable Dipole on 12 & 17

Ultra Light Weight

Small Foot Print

Good all-around performance

2 Year warranty

The performance of the MINI-33-AW will truly surprise you! Whether you enjoy chasing DX, or rag chewing with your friends, the MINI-33-AW will give you years of enjoyment!

Frequency, MHz	28, 24, 21, 18, 14
Power Rating, watts CW	500
Power Rating, watts SSB	1000
Power Rating, AM/FM	250
Power Rating, RTTY/AMTOR	250
VSWR at frequency	1.0/1 to 1.5/1
Forward Gain, dBd 10 meters	6.1
Forward Gain, dBd 12 meters	0
Forward Gain, dBd 15 meters	4.2
Forward Gain, dBd 17 meters	0
Forward Gain, dBd 20 meters	3.5
Front-to-Back Ratio, dB 10 meters	16
Front-to-Back Ratio, dB 12 meters	0
Front-to-Back Ratio, dB 15 meters	13
Front-to-Back Ratio, dB 17 meters	0
Front-to-Back Ratio, dB 20 meters	12
Boom Length	6 ft	1.83 m
Maximum Element Length	19.6875 ft	6 m
Turning Radius	10.29 ft	3.14 m
Mast Size hardware (equipped)	1.5 in	3.81 cm
Assembled weight	15.5 lbs	7.03 kg
Wind Surface Area	3.7 sq ft	.344 sq m
Wind Load, EIA Standard 80 MPH	49 lbs	22.23 kg
Warranty	2
Recommended Coax	Belden RG-8 / RG-213
