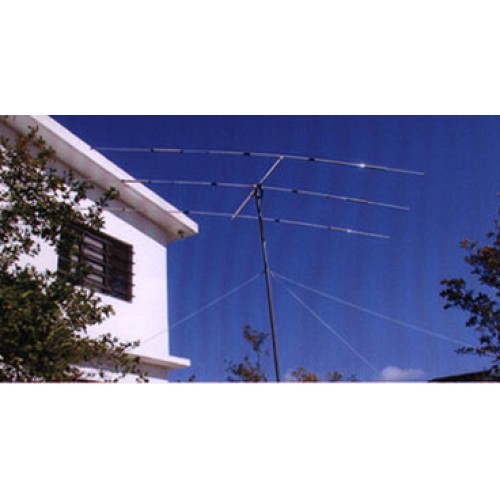

Mosley Minibeam Mini33A voor 20,15,10 meter

MINI-33-A

10, 15, 20 Meter

3 Element

Ultra Light Weight

Small Foot Print

Good all-around performance

Color coded

18-8 & 300 series Stainless Steel

Frequency, MHz	28, 21, 14
Forward Gain, dBd
10 meters, 3 element	6.1
15 meters, 3 element	4.2
20 meters, 3 element	3.5
Front-to Back Ratio, dB
10 meters	16
15 meters	13
20 meters	12
Power Rating, watts CW	500
Power Rating, watts SSB	1000
Power Rating, watts AM/FM	250
Power Rating, watts RTTY/AMTOR	250
VSWR at frequency	1.0/1 to 2.0/1
Boom Length, ft.	6
Turning Radius, ft.	10.29
Mast Size, in. hardware equipped	1.5
Maximum Element Length, ft.	19.6875
Assembled weight, lbs.	10
Wind Surface Area, sq. ft.	2.5
Wind Load, EIA 80 MPH	38
