  • Mosley Mini-32A minibeam 2 el, 3 banden

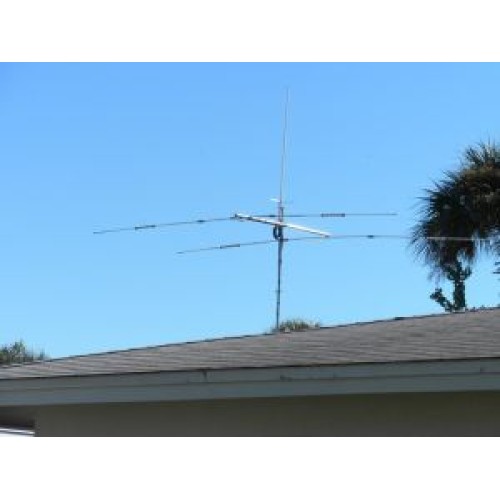

Mosley Mini-32A minibeam antenne

In addition to the large Yagi antennas, Mosley also smaller versions of the short waves Yagi antennas. Due to the small turning radius of only 3m, these antennas are installed on almost every rooftop. Despite the smaller size of the antennas can compete with the big versions.

Technical Data:

mini32A minibeam antenne

• 10, 15, 20 Meter
• 2 Element
• Good all-around performance
• Color coded
• 18-8 & 300 series Stainless Steel


Frequency, MHz
 28, 21, 14
Power Rating, watts CW
 500
Power Rating, watts SSB
 1000
Power Rating, AM/FM
 250
Power Rating, RTTY/AMTOR
 250
VSWR at frequency
 1.0/1 to 2.0/1
Forward Gain, dBd 10 meters
 5.1
Forward Gain, dBd 15 meters
 4.5
Forward Gain, dBd 20 meters
 3.3
Front-to-Back Ratio, dB 10 meters
 17 (avg.)
Front-to-Back Ratio, dB 15 meters
 17 (avg.)
Front-to-Back Ratio, dB 20 meters
 17 (avg.)
Boom Length
 6 ft 1.83 m
Maximum Element Length
 19.6875 ft 6 m
Turning Radius
 10.29 ft 3.14 m
Mast Size hardware (equipped)
 1.5 in 3.81 cm
Assembled weight
 9.5 lbs 4.31 kg
Wind Surface Area
 2.5 sq ft 0.232 sq m
Wind Load, EIA Standard 80 MPH
 38 lbs 17.24 kg
Warranty
 2
Recommended Coax
 Belden RG-8 / RG-213
Options
Add 12 & 17 Meters

Schrijf een beoordeling

Opmerking: HTML is niet vertaald!
    Slecht           Goed
Validatie

Mosley Mini-32A minibeam 2 el, 3 banden

  • Merk: Mosley
  • Productcode: mini32a
  • Beschikbaar: 2 - 5 dagen

  • € 710,74

  • Excl. BTW: € 587,39
